ArcAngel ET, Gastric Suction & Feeding Tube Holder.

Invented by a Nurse Practitioner, ArcAngel is a secure, adjustable, multi-functional neonatal and pediatric endotracheal tube holder that eliminates tape and increases ETT/NGT placement accuracy. Silicone cheek pads are gentle, adjustable and easy to clean.

One Nurse, One Hand — Seconds for Adjustments

Key Features & Benefits.

  • Securely holds both endotracheal and gastric suction/feeding tube
  • Adjust ET and NG or gastric suction tubes independently of each other
  • NG / gastric suction tube can be inserted and secured both orally and nasally
  • 0.25cm hash marks on the holder make adjustments safe and precise
  • MRI safe – metal free
  • Non allergenic – latex free
  • Eliminates tape on baby’s face for better visibility
  • Decreased risk of skin damage due to tape irritation and repeated cleaning/reapplication
  • Cheek pads are washable and fully adjustable for custom fit
  • Cheek pads are designed to eliminate the need to trim
  • The arc is easily removed in emergency situations without need to remove cheek pads

Order Your ArcAngel Samples Here.

Order Samples

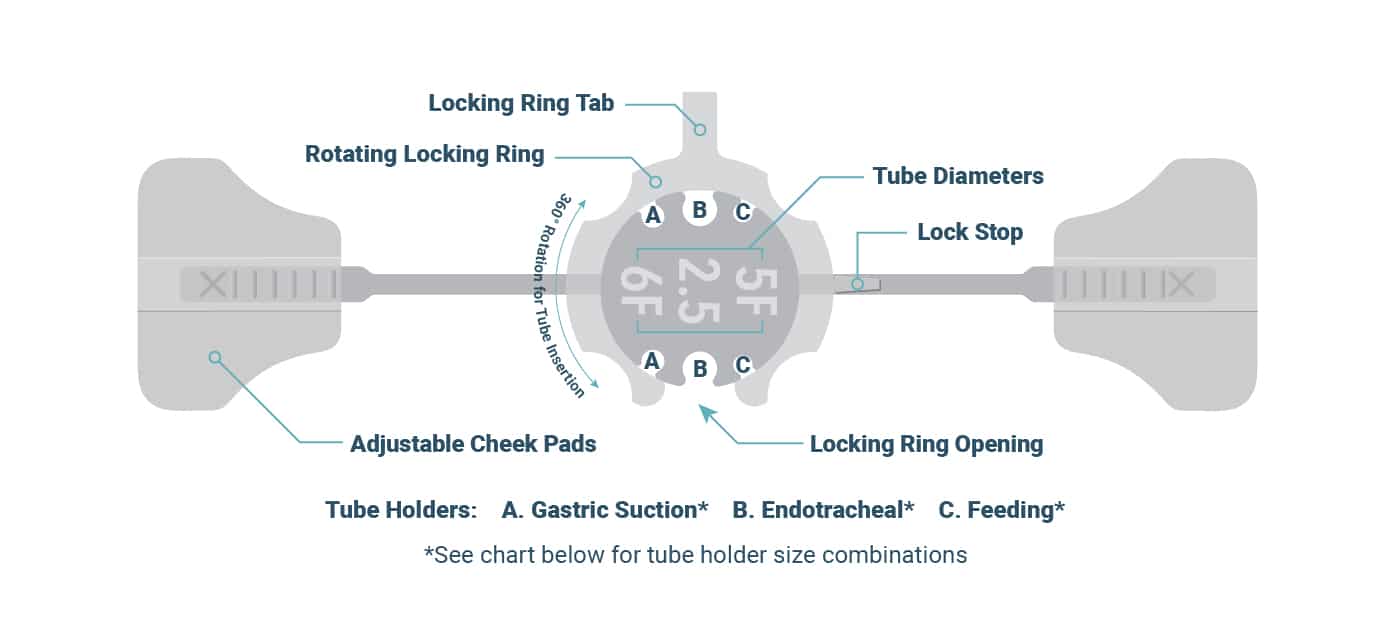

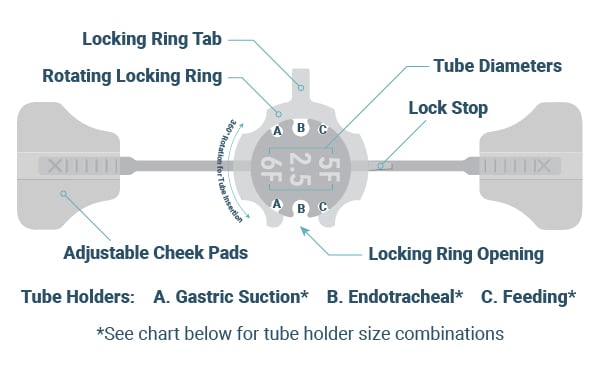

ArcAngel Twist Lock Technology.

Innovative Tube Holder Design.

Secure & Multi-Functional

The ArcAngel is the only product on the market that can securely hold both an endotracheal and gastric suction/feeding tube. Since the tubes can be adjusted independently of each other, the ETT will remain secure in its position while the NG or gastric suction tube is being adjusted and vice versa.

The ArcAngel is secure enough to maintain ETT placement but it will NOT occlude the tube. A suction catheter will easily pass through the ETT when secured in the ArcAngel.

Precision Adjustment

Ensure accurate adjustment every time by utilizing the 0.25cm hash marks on the holder itself. One nurse using one hand can adjust the tubes—no other staff needed. Less chance of ETT becoming dislodged during adjustments or normal baby care which means safer for baby. Ergonomic, anti-slip outer grooves on the rotating locking ring make adjustments quick and safe.

Improved Cheek Pads & Adhesive.

Simplified Cleaning & Fewer Reapplications

Silicone cheek pads are water-proof and easy to clean. Better cheek pad adhesive reduces the need to replace the holder due to a high humidity environment or soiling.

Simple & Safe Emergency Removal/Replacement

The ArcAngel is the only product on the market that can be pulled off in an emergency without the need to reapply adhesive. Unlike other ETT holders that must be cut or pulled off during an emergency, ArcAngel lifts out of the cheek pads and can be reinserted.

A Perfect Fit for Any Little Warrior.

The ArcAngel is fully adjustable for a custom fit for every baby, every time and is available in four different sizes.

Product Specifications.

ArcAngel Suggested Weight & Tube Size Combinations

* See chart below for tube holder size combinations

Infant Weight Size ETT Size ETT Outer
Diameter
Fitment range		 Feeding
Tube Size		 Gastric Suction
Tube Size
≤1000gm 0 2.5mm 3.3 – 3.7mm 6F 5F
1001-2500 gm 1 3.0mm 4.0 – 4.5mm 8F 6.5F
2501-4000gm 2 3.5mm 4.5 – 5.0mm 10F 6.5F
4001gm+ 3 4.0mm 5.0 – 5.5mm 10F 6.5F
